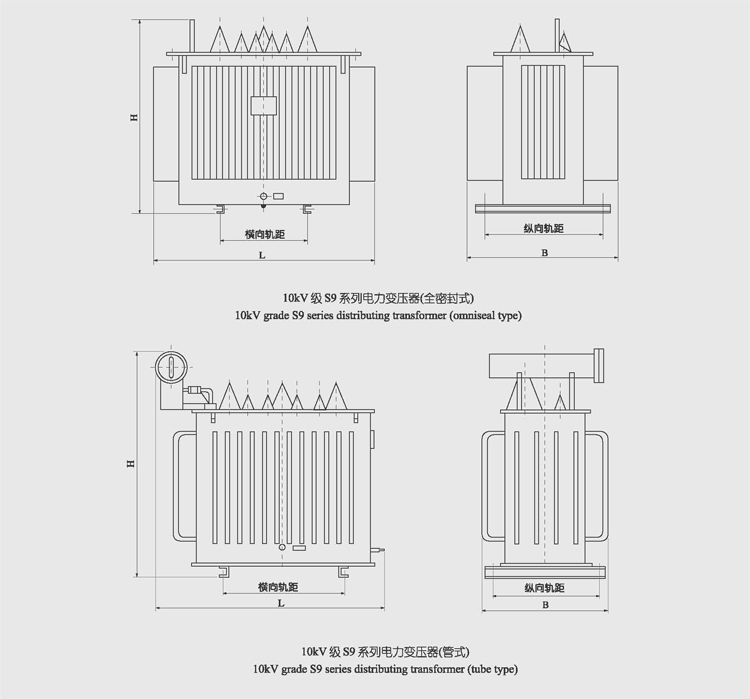

10KV级S9、S9-M系列油浸式电力变压器主要技术参数 Main technical parameters of 10KV S9、S9-M series power transformer. |
额定容量 (kVA) Rated capacity | 电压组合 Voltage combination | 联结方式 Connection method | 损耗(kW)Loss | 空载电流(%) No-load curren | 阻抗电压(%) Impedance voltage | 重量(kg)Weight | 外形尺寸(mm)(长Lx宽Bx高H) Outline dimension | 轨距(纵向/横向) Gauge vertical /horizontal | 高压(KV) High-voltage | 低压(KV) Low-voltage | 空载 No-load | 负载(75℃) load | 器身重 Machine weight | 油量 Oil mass | 总量 Ovcrall weight | 全密封 Omnsieal | 非密封 Un-omnsieal | 200 | 11 10.5 10 6.3 6 | 6.3 6 3.15 3 | yd11 | 0.42 | 3.15 | 1.8 | 4.5 | 620 | 150 | 890 | 1240x810x1150 | 1530x810x1270 | 660/660 | 250 | 0.51 | 3.60 | 1.7 | | 720 | 160 | 1030 | 1310x880x1170 | 1595x880x1290 | | 315 | 0.61 | 4.30 | 1.6 | | 830 | 210 | 1225 | 1410x920x1260 | 1650x920x1380 | | 400 | 0.73 | 5.20 | 1.5 | | 1010 | 245 | 1480 | 1440x940x1280 | 1720x940x1380 | | 500 | 0.88 | 6.20 | 1.4 | | 1235 | 265 | 1725 | 1590x1010x1310 | 1860x1010x1450 | | 630 | 1.04 | 7.30 | 1.3 | | 1400 | 300 | 2090 | 1655x1070x1360 | 1890x100x1510 | 820/820 | 800 | 1.26 | 8.90 | 1.2 | | 1600 | 390 | 2540 | 1710x1160x1375 | 2080x1160x1600 | | 1000 | 1.49 | 10.5 | 1.1 | | 1825 | 440 | 2830 | 1835x1250x1510 | 2150x1250x1790 | | 1250 | 1.76 | 12.42 | 1.0 | | 2130 | 510 | 3295 | 1880x1280x1550 | 2170x1280x1830 | | 1600 | 2.10 | 14.85 | 0.9 | | 2510 | 690 | 3990 | 1910x1300x1760 | 2210x1300x1990 | | 2000 | 2.52 | 17.82 | 0.9 | | 2650 | 750 | 4400 | - | 2210x1650x2300 | | 2500 | 3.00 | 20.70 | 0.8 | | 3170 | 880 | 5330 | - | 2240x1760x2260 | 1070/1070 | 3150 | 3.50 | 24.80 | 0.8 | | 3680 | 1270 | 6560 | - | 2285x2260x2290 | | 4000 | 4.30 | 28.80 | 0.7 | | 4375 | 1580 | 7250 | - | 2400x2420x2390 | | 5000 | 5.20 | 33.03 | 0.7 | | 5280 | 1830 | 8975 | - | 2480x2580x2510 | | 6300 | 6.20 | 36.93 | 0.6 | 5.5 | 7065 | 2310 | 11930 | - | 2530x2760x2725 | | 8000 | 8.40 | 40.50 | 0.55 | | 8370 | 2525 | 13980 | - | 2600x2800x2980 | 1475/1475 | 10000 | 9.90 | 47.70 | 0.55 | | 9970 | 2860 | 16150 | - | 2720x2820x3180 | |
|
注(Note):高压分接范围(Tapping range of high-voltage):±5%或±2 x 2.5%;频率(Freqiemcy):50Hz; |
注意:表中重量、外形尺寸仅供参考,**终尺寸以合同签订后图纸确认为准 咨询热线:0635-8873388 |
10KV级SZ9系列有载调压油浸式电力变压器主要技术参数 Main technical parameters of 10KV SZ9 series on-load regulation power transformer. |
额定容量 (kVA) Rated capacity | 电压组合 Voltage combination
| 联结方式 Connection method | 损耗(kW)Loss | 空载电流(%) No-load current | 阻抗电压(%) Impedance voltage | 重量(kg)Weight | 外形尺寸(mm)(长Lx宽Bx高H) Outline dimension | 轨距(纵向/横向) Gauge vertical /horizontal | 高压(KV) High-voltage | 低压(KV) Low-voltage | 空载 No-load | 负载(75℃) load | 器身重 Machine weight | 油量 Oil mass | 总量 Ovcrall weight | 200 | 11 | 6.3 | Ydn11 | 0.45 | 3.30 | 1.8 | 4.5 | 650 | 200 | 1040 | 1850x830x1340 | 660/660 | 250 | 10.5 | 6 | | 0.55 | 3.80 | 1.7 | | 760 | 215 | 1200 | 1900x900x1370 | 660/660 | 315 | 10 | 3.15 | | 0.65 | 4.52 | 1.6 | | 870 | 290 | 1435 | 1910x950x1455 | 660/660 | 400 | 6.3 | 3 | | 0.78 | 5.46 | 1.5 | | 1060 | 330 | 1730 | 1990x970x1490 | 660/660 | 500 | 6 | | | 0.94 | 6.51 | 1.4 | | 1300 | 360 | 2000 | 2110x1050x1530 | 660/660 | 630 | | | | 1.10 | 7.67 | 1.3 | | 1470 | 405 | 2420 | 2130x1100x1580 | 820/820 | 800 | | | | 1.35 | 9.35 | 1.2 | 5.5 | 1680 | 520 | 2945 | 2290x1180x1660 | 820/820 | 1000 | | | | 1.60 | 11.00 | 1.1 | | 1920 | 580 | 3280 | 2320x1250x1880 | 820/820 | 1250 | | | | 1.89 | 13.00 | 1.0 | | 2240 | 670 | 3790 | 2330x1330x1910 | 820/820 | 1600 | | | | 2.25 | 15.60 | 0.9 | | 2635 | 900 | 4590 | 2370x1320x2050 | 820/820 | 2000 | | | | 2.70 | 18.70 | 0.9 | | 3785 | 960 | 5050 | 2610x1650x2270 | 820/820 | 2500 | | | | 3.20 | 21.70 | 0.8 | | 3330 | 1120 | 6055 | 2640x1760x2290 | 1070/1070 | 3150 | | | | 3.75 | 25.50 | 0.8 | | 4150 | 1460 | 7170 | 2710x2270x2360 | 1070/1070 | 4000 | | | | 4.60 | 30.20 | 0.7 | | 5030 | 1820 | 8685 | 2800x2460x2470 | 1070/1070 | 5000 | | | | 5.0 | 34.70 | 0.7 | | 6110 | 1940 | 10300 | 3130x2580x2560 | 1070/1070 | 6300 | | | | 6.60 | 38.70 | 0.6 | 5.5 | 8125 | 2560 | 13560 | 3180x2760x2780 | 1070/1070 |
|
注:有载调压变压器高压可提供±4 x 2.5%或±3×2 5%调压范围: Note:it can supplyvoltage reguhfing rangeof 4×2.5%017±3×2.5%forhigh-voltageofon-loadregulationtransformer |
